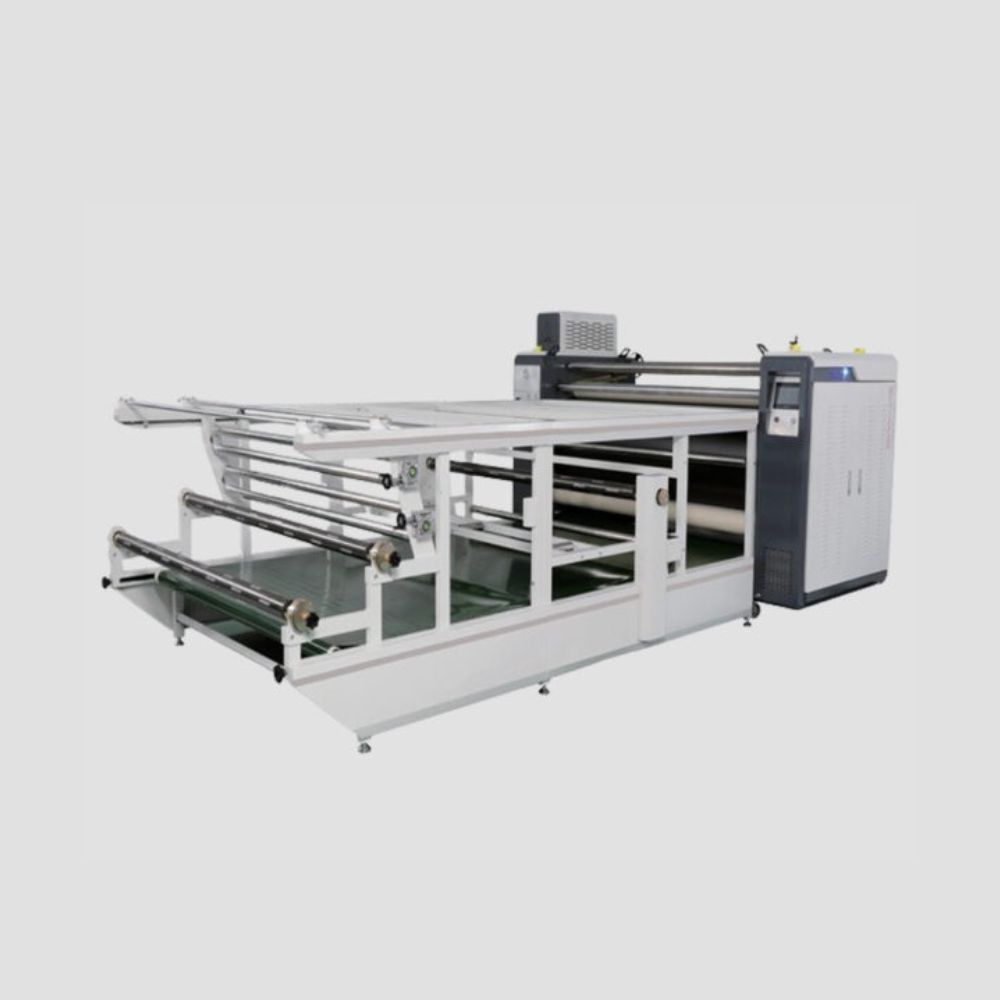

Pengda Type Heat Transfer Sublimation Machine
- High density thickened blanket, good transfer effect, 100% Nomex Blanket.
- Imported Brand PLC Intelligent touch screen, control virus parameter of the machine.
- Copper carbon brush collecting ring precise temperature control and easy maintenance.
- Far infrared automatic correction remote shutdown control.
- Gluing roller The high temperature roller can effectively strengthen the transfer rate and reduce the damage of the blanket.
- Temperature control is good, can save sixty percent energy.
- The printed product without color.
- Roller diemeter 800mm / 1000mm / 1000mm available.
Specifications
| Specifications | 600mm | 800mm | 1000mm |
|---|---|---|---|
| Type | Oil Heated 150 ltr. | Oil Heated 220 ltr. | Oil Heated 280 ltr. |
| No. of Heater | 22 nos | 32 nos | 42 nos |
| Media | Polyester Fabric | Polyester Fabric | Polyester Fabric |
| Transfer Width | 72 Inch | 72 Inch | 72 Inch |
| Production | 6,000 mtr./24 hr | 9,000 mtr./24 hr | 14,000 mtr./24 hr |
| Air Shaft | 5 pcs | 5 pcs | 5 pcs |
| Blanket | 100% Nomex | 100% Nomex | 100% Nomex |
| Working Attachment | Top Feeding | Top Feeding | Top Feeding |
| Electric Power | 45KV | 60KV | 75KV |
| Voltage | 220V 3 Phase | 220V 3 Phase | 220V 3 Phase |
| Dimension | 4650*3000*1700 mm | 5000*3000*1900 mm | 5250*3000*2150 mm |
| Weight | 2700kg | 3200kg | 3800kg |
